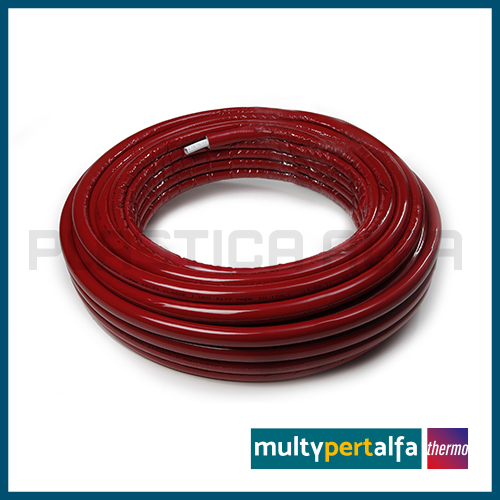

The multilayer PERT-Al-PERT THERMO pipe belonging to the Multypertalfa line consists of 5 layers: the two PERT layers (inner and outer) are bonded to the aluminium intermediate layer by means of two stabilised polymer bonding layers. The aluminium layer provides an oxygen barrier, reduces linear thermal expansion effects and gives the tube dimensional stability and flexural strength. The internal material (PERT) provides resistance to high temperatures under pressure while maintaining the potability characteristics of the water.
The insulating sheath is made of polyethylene (PE-LD) with a red outer film (helps to identify the transport of hot water) made of scratch-resistant PE. Ideal for heating systems, sanitary installations, naval and industrial plants.
GENERAL CATALOGS AND TECHNICAL DATA SHEETS IN
VARIANT SIZE Insulation mt per roll
GRTMP160 16 x 2.0 x 0.2 6 mm 50
GRTMP160-100 16 x 2.0 x 0.2 6 mm 100
GRTMP200 20 x 2.0 x 0.25 6 mm 50
GRTMP260 26 x 3.0 x 0.3 9 mm 25
GRTMP260-50 26 x 3.0 x 0.3 9 mm 50
GRTMP320 32 x 3.0 x 0.5 13 mm 25
CONTINUOUS OPERATING TEMPERATURES AND PRESSURES:
95°C 10 bar
THERMAL CONDUCTIVITY:
0,40 W/mK
TEMPERATURE PEAK:
110°C
LINEAR THERMAL EXPANSION COEFFICIENT:
0,025 mm/m·K
ALLOWABLE TEMPERATURES:
-30°C ÷ 100°C
RUGOSITÁ INTERNA:
7·10^-6 m
APPLICATION CLASSES:
2/10 bar, 4/10 bar, 5/10 bar
MINIMUM BENDING RADIUS (with bending spring):
3,5 x Ø ext
MINIMUM BENDING RADIUS (without bending spring):
5 x Ø ext
OXYGEN PERMEABILITY:
0 mg/l
REGULATION FOR DRINKING WATER:
DM 174-06/04/2004 (Italy), DM 23/04/2009 e Reg. UE n° 10/2011
REFERENCE STANDARDS:
UNI EN ISO 21003, UNI EN ISO 15875, DIN 16837, DIN 16892
INSULATING SHEATH FEATURES:
- POLYETHYLENE SHEATHING (PE-LD) closed-cell foam 30 kg/m
- ODOURLESS AND NON-TOXIC
- TOTALLY RECYCLABLE
EXTERNAL FILM:
Scratch-resistant PE
THERMAL CONDUCTIVITY:
0.04 W m°K a 40°
TENSILE RESISTANCE:
> 0.18 N/mm
ULTIMATE ELONGATION:
> 80%
STEAM PERMEABILITY:
< 0.315 ng/Pa.s.m
REFERENCE STANDARDS:
Thicknesses in accordance with Law no. 10 of 09/01/1991 with reference to UNI 10376 and suitable for installations in accordance with Law 37/08. Conforms to UNI 9177 (self-extinguishing class 1)
