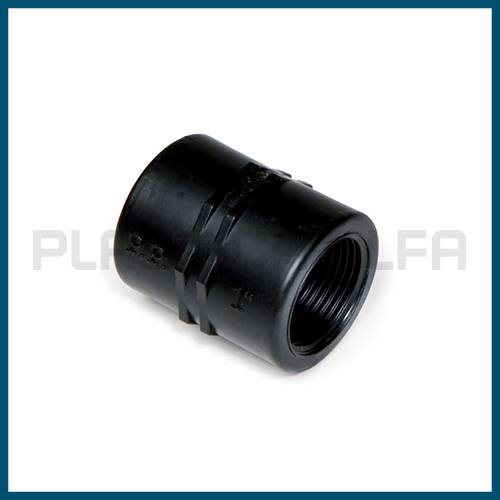

The Plastica Alfa Threaded Socket is designed for threaded connections from ø ½” to 4″ in hydraulic applications related to the distribution of pressurised fluids in irrigation and waterworks systems. The socket, made of black, high-impact UV-stabilised PP, has BSP (GAS) female threads and is designed and tested to guarantee a PN16 working pressure: equipped with a central hexagon for easy gripping and a metal reinforcement ring in diameters from 2½ to 4″.
In particular, it is used in drinking water transport systems in aqueducts and civil installations, in irrigation and gardening, geothermal systems, and for conveying wastewater and industrial water.
GENERAL CATALOGS AND TECHNICAL DATA SHEETS IN
Variant Size Pn Bag Box
15021-B ½" PN16 20 1200
15021-C ¾" PN16 20 800
15021-D 1" PN16 20 400
15021-E 1" ¼ PN10 10 300
15021-F 1" PN10 10 200
15021-G 2" PN10 5 120
15021-H 2" ½ PN10 - 90
15021-L 3" PN10 - 60
15021-M 4" PN10 - 32
*| UV-stabilised high-impact black propylene with high ageing stability |*
REINFORCING RING:
The presence of the reinforcement ring in couplings with female threads provides an additional guarantee in terms of resistance to operating pressures, especially at high temperatures and in the long term.
WORKING TEMPERATURES:
MIN= -10°C MAX= +80°C
REGULATION FOR DRINKING WATER:
DM 174-06/04/2004 (Italy), DM 23/04/2009 e Reg. UE n° 10/2011, W270 and KTW (Germany), ATA (Netherlands), Global Mark (Australia), ACS (France), WRAS (UK).
REFERENCE STANDARDS:
- Filetti BSP [BSP Threads]: UNI EN 10226 (ISO 7-1), BS 21, AS 1722.1
- Filetti NPT [NPT Threads]: ANSI-ASME B1.20.1
- Prove [Tests]: ISO 1167
