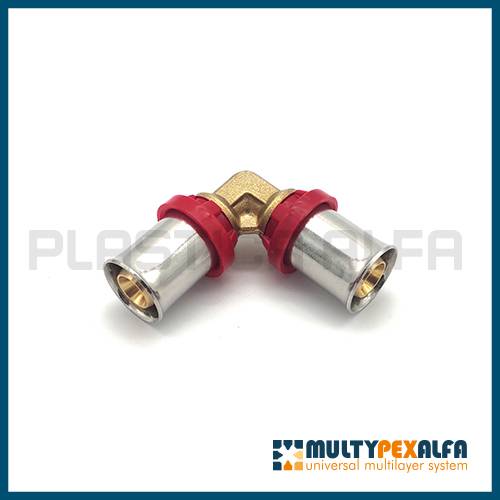

90° elbow with press connections for multilayer pipes. The fitting is used in plumbing systems, high temperature heating systems, underfloor heating and cooling systems.
All press fittings from Plastica Alfa are made of brass and equipped with an o-ring to ensure a seal in combination with the profile, and a nylon ring to insulate the fitting body. The 90° elbow integrates perfectly with the Multypexalfa multilayer pipe system.
GENERAL CATALOGS AND TECHNICAL DATA SHEETS IN
VARIANT SIZE BAG
MS86950-1 16 x 16 x 2,0 10
MS86950-2 20 x 20 x 2,0 10
MS86950-3 26 x 26 x 3,0 5
MS86950-4 32 x 32 x 3,0 5
All connection threads between fittings belonging to the ‘screw‘ and ‘press‘ series are made according to standard EN 10226-1,2 (formerly ISO 7-1).
The threads are conical for male threads and cylindrical for female threads.
