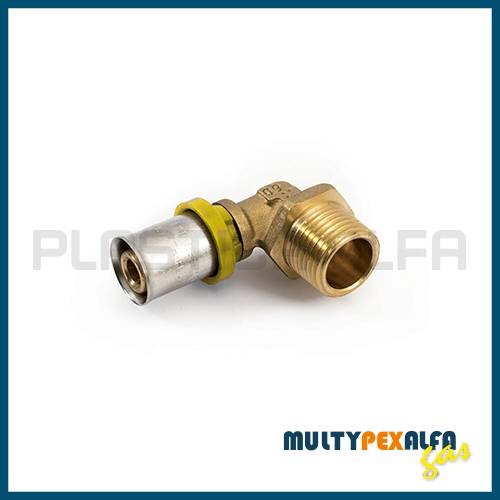

90° male threaded elbow gas multipexAlfa Plastica Alfa

Elbow 90° – male thread

SKU: MG96925 Categories: , ,

Male threaded 90° elbow with press-fit connections and male thread suitable for use in gas conveying systems. Ideal for gas installations in homes, commercial buildings, residential facilities and more.

All GAS press fittings from Alfa Plastica are made of brass and equipped with an o-ring to ensure a seal in combination with the profile, and a nylon ring to insulate the fitting body. The 90° male threaded elbow integrates perfectly with the Multypexalfa GAS multilayer pipe system.

GENERAL CATALOGS AND TECHNICAL DATA SHEETS IN

VARIANTSIZEBAGBOX
MG96925-1-B16 x ½” x 2,010100
MG96925-2-B20 x ½” x 2,01060
MG96925-2-C20 x ¾” x 2,01060
MG96925-3-C26 x ¾” x 3,0540
MG96925-3-D26 x 1” x 3,0ndnd
MG96925-4-D32 x 1” x 3,0ndnd

THREADS:

All connection threads between fittings belonging to the ‘screw‘ and ‘press‘ series are made according to standard EN 10226-1,2 (formerly ISO 7-1).

The threads are conical for male threads and cylindrical for female threads.
