Clamp saddle with barbed fitting

SKU: 17050 Categories: Hydraulics, Irrigation, Clamp saddles, Clamp saddles
Plastica Alfa Catalog
  • Thermohydraulics
  • Hydraulics
    • Blu line plus
    • Flanged system
    • Black line
    • Universal
    • Clamp saddles
    • Threaded fittings
    • Alfarapid System
    • Valvevolution
    • Bibcocks
    • Equipment & accessories
  • Irrigation
  • Firefighting
  • Description

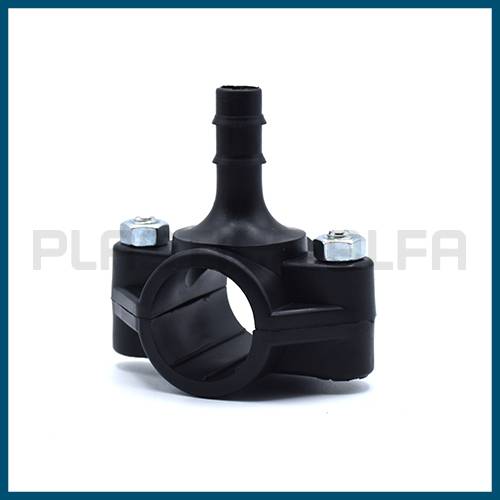

Clamp saddle with barbed fitting is designed for fast and reliable branching of PP or PE pipes in hydraulic applications related to the distribution of pressurised fluids. Clamp saddle with barbed fitting is made of black, high-impact UV-stabilised PP and is available in diameter 32: it is equipped with a hose connector for connections on branches with 16″ pipes. It is equipped with a nitrile rubber gasket and galvanised steel or A/304 stainless steel bolts (on request).

In particular, it is used in drinking water transportsystems in aqueducts and civil installations, irrigation and gardening.

GENERAL CATALOGS AND TECHNICAL DATA SHEETS IN

Download area

VariantsizeBoltBox
17050-4-132 x 162200

WORKING TEMPERATURES:

MIN= -10°C MAX= +80°C

REGULATION FOR DRINKING WATER:

DM 174-06/04/2004 (Italy), DM 23/04/2009 e Reg. UE n° 10/2011, W270 and KTW (Germany), ATA (Netherlands), Global Mark (Australia), ACS (France), WRAS (UK).

REFERENCE STANDARDS:

  • Tubi serie metrica [Metric pipes]: UNI EN 12201, ISO 11922-1, DIN 8074, AS/NZS 4130, BS 6572, BS6730, ISO 4427, UNI 7990, ISO 12162
  • Tubi serie IPS [IPS pipes]: ASTM D 3035, F714, AWWA C-901/906
  • Filetti BSP [BSP threads]: UNI EN 10226 (ISO 7-1), BS 21, AS 1722.1
  • Filetti NPT [NPT threads]: ANSI-ASME B1.20.1
  • Prove [Tests]: ISO 13460, ISO 17885 (ex ISO 14236)

ALFAIDRO LINE CERTIFICATES:

  • KIWA UNI : Netherlands, Italy
  • RINA : Italy
  • AENOR : Spain
  • L.P.E.E. : Maroc
  • GOST : Russia
  • CSTBat : France
  • ACS : France
  • CTPC : Romania

VERSIONS FOR METRIC SERIES PIPES:

  • PE (PELD, PEMD, PEHD)
  • PPR
  • PVC

17010
17020

Diameters
ø 20 ÷ ø 315

Threads
ø ½” ÷ ø 4″
without reinforcing ring

ø 20 ÷ ø 63 – PN 12.5
ø 75 ÷ ø 315 – PN 10
ø 140 ÷ ø 160 – PN 12.5
ø 3″ ÷ ø 4″ – PN 6

17011
17021

Diameters
ø 20 ÷ ø 315

Threads
ø ½” ÷ ø 4″
with reinforcing ring

ø 20 ÷ ø 63 – PN 16
ø 75 ÷ ø 315 – PN 12.5
ø 140 ÷ ø 160 – PN 16
ø 3″ ÷ ø 4″ – PN 10

17050

Diameters
ø 32

Barbed fitting
ø 16

PN 4

17005

Diameters
ø 20 ÷ ø 40

Threads
ø 16

PN 6

17910

Diameters
ø 25 ÷ ø 125

Compression fittings
ø 20 ÷ ø 40

PN 16

37010

Diameters
ø 32 ÷ ø 110

Threads
ø 16

PN 6

VERSIONS FOR GALVANISED PIPES:

17030
17040

Diameters
ø 60 ÷ ø 120

Threads
ø ½” ÷ ø 1″¼

PN 10

VERSIONS FOR IPS (NPS) PIPES:

27010
27011

Diameters
ø 1″½ ÷ ø 6″

Threads
ø ½” ÷ ø 2″

PN 16
