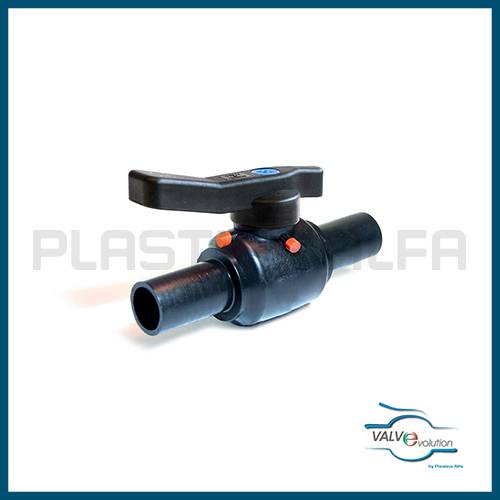

The Fusion Valvevolution series HDPE valve, made of single-body HDPE, ensures high levels of safety and resistance to operating temperatures and pressures. It is ideal for connecting polyethylene pipes (PELD, PEMD and PEHD) in the distribution of pressurised fluids and is tested to guarantee a PN16 working pressure. The brass ball and pin are completely enclosed in their casing, which guarantees no stagnation or encrustation that would compromise the quality of the drinking water.
The Fusion ball valve in HDPE, is connected to the circuit via the two tangs and by means of butt welding or an electric sleeve and, equipped with an ergonomic PAGF handle, is distinguished by its ease of installation in all civil and industrial water distribution and heating systems, in geothermal systems, and in waterworks.
GENERAL CATALOGS AND TECHNICAL DATA SHEETS IN
VARIANT SIZE BOX
18VCEE-2 20 60
18VCEE-3 25 35
18VCEE-4 32 25
18VCEE-6 40 15
18VCEE-7 50 8
18VCEE-8 63 4
18VCEE-9 75 8
18VCEE-10 90 4
18VCEE-11 110 2
WORKING TEMPERATURES:
MIN= -15°C MAX= +80°C
REGULATION FOR DRINKING WATER:
DM 174-06/04/2004 (Italy), DM 23/04/2009 e Reg. UE n° 10/2011
REFERENCE STANDARDS:
- Prove [Tests]: ISO 9393-1 : 2004 – ISO 9393-2 : 2005
