Reducing socket M-F threaded fittings Plastica Alfa
Home / Hydraulics / Threaded fittings

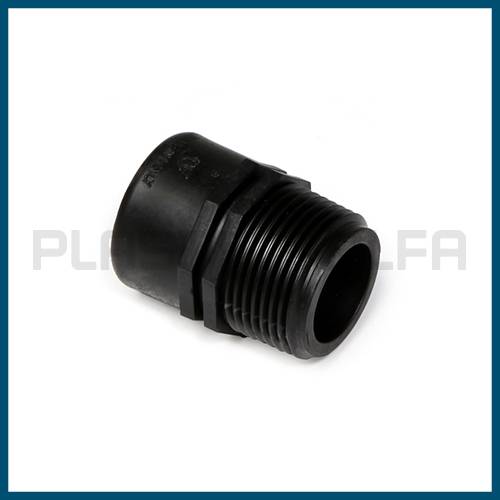

Reducing socket M-F

SKU: 15040 Categories: Hydraulics, Threaded fittings
Plastica Alfa Catalog
  • Thermohydraulics
  • Hydraulics
    • Blu line plus
    • Flanged system
    • Black line
    • Universal
    • Clamp saddles
    • Threaded fittings
    • Alfarapid System
    • Valvevolution
    • Bibcocks
    • Equipment & accessories
  • Irrigation
  • Firefighting
  • Description

The Male – Female Reducing Threaded Socket is designed for threaded connections from ø ½” to 4″ in hydraulic applications related to the distribution of pressurised fluids in irrigation and waterworks systems. The M-F reducing socket, made of black, UV-stabilised high-impact PP, has two different threads (male on one side and female on the other) BSP (GAS) and is designed and tested to ensure a working pressure PN16: fitted with central hexagon for easy gripping and metal reinforcement ring in diameters 2½ to 4″.

In particular, it is used in drinking water transport systems in aqueducts and civil installations, in irrigation and gardening, geothermal systems, and for conveying wastewater and industrial water.

GENERAL CATALOGS AND TECHNICAL DATA SHEETS IN

Download area

VariantSizePnBagBox
15040-C-B¾" x ½”PN16501000
15040-D-B1" x ½”PN1620800
15040-D-C1" x ¾"PN1620800
15040-E-C1"¼ x ¾"PN1020460
15040-E-D1"¼ x 1"PN1020400
15040-F-E1"½ x 1"¼PN1020360
15040-G-F2"x 1"½PN105180
15040-H-G2"½ x 2"PN10-120
15040-L-G3" x 2"PN10-80
15040-L-H3" x 2"½PN10-70
15040-M-L4" x 3"PN10-36

*| UV-stabilised high-impact black propylene with high ageing stability |*

REINFORCING RING:

The presence of the reinforcement ring in couplings with female threads provides an additional guarantee in terms of resistance to operating pressures, especially at high temperatures and in the long term.

WORKING TEMPERATURES:

MIN= -10°C MAX= +80°C

REGULATION FOR DRINKING WATER:

DM 174-06/04/2004 (Italy), DM 23/04/2009 e Reg. UE n° 10/2011, W270 and KTW (Germany), ATA (Netherlands), Global Mark (Australia), ACS (France), WRAS (UK).

REFERENCE STANDARDS:

  • Filetti BSP [BSP Threads]: UNI EN 10226 (ISO 7-1), BS 21, AS 1722.1
  • Filetti NPT [NPT Threads]: ANSI-ASME B1.20.1
  • Prove [Tests]: ISO 1167

ALFAIDRO LINE CERTIFICATES:

  • KIWA UNI : Netherlands, Italy
  • RINA : Italy
  • AENOR : Spain
  • L.P.E.E. : Maroc
  • GOST : Russia
  • CSTBat : France
  • ACS : France
  • CTPC : Romania
