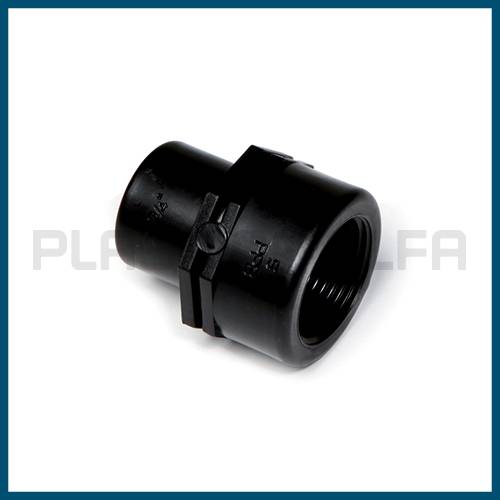

The Plastica AlfaThreaded Reducing Socket is designed for threaded connections from ø ½” to 4″ in hydraulic applications related to the distribution of pressurised fluids in irrigation and waterworks systems. The UV-stabilised, high-impact black PP reducing socket is equipped with two different BSP (GAS) female threads and is designed and tested to ensure a working pressure PN16: fitted with central hexagon for easy gripping and metal reinforcement ring in diameters 2½ to 4″.
In particular, it is used in drinking water transport systems in aqueducts and civil installations, in irrigation and gardening, geothermal systems, and for conveying wastewater and industrial water.
GENERAL CATALOGS AND TECHNICAL DATA SHEETS IN
Variant Size Pn Bag Box
15031-C-B ¾" x ½" PN16 20 900
15031-D-C 1” x ¾" PN16 20 440
15031-E-D 1"¼ x 1" PN10 10 280
15031-F-E 1”½ x 1"¼ PN10 10 200
15031-G-F 2" x 1”½ PN10 5 130
15031-H-G 2”½ x 2" PN10 - 80
15031-L-G 3” x 2" PN10 - 80
15031-L-H 3" x 2"½ PN10 - 60
15031-M-L 4" x 3" PN10 - 32
*| UV-stabilised high-impact black propylene with high ageing stability |*
REINFORCING RING:
The presence of the reinforcement ring in couplings with female threads provides an additional guarantee in terms of resistance to operating pressures, especially at high temperatures and in the long term.
WORKING TEMPERATURES:
MIN= -10°C MAX= +80°C
REGULATION FOR DRINKING WATER:
DM 174-06/04/2004 (Italy), DM 23/04/2009 e Reg. UE n° 10/2011, W270 and KTW (Germany), ATA (Netherlands), Global Mark (Australia), ACS (France), WRAS (UK).
REFERENCE STANDARDS:
- Filetti BSP [BSP Threads]: UNI EN 10226 (ISO 7-1), BS 21, AS 1722.1
- Filetti NPT [NPT Threads]: ANSI-ASME B1.20.1
- Prove [Tests]: ISO 1167
