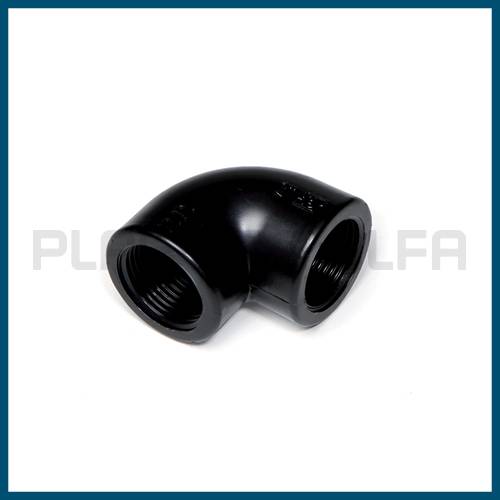

Elbow 90° female thread threaded fittings Plastica Alfa
Home / Hydraulics / Threaded fittings

Elbow 90° – female thread

SKU: 16050 Categories: Hydraulics, Threaded fittings
Plastica Alfa Catalog
  • Thermohydraulics
  • Hydraulics
    • Blu line plus
    • Flanged system
    • Black line
    • Universal
    • Clamp saddles
    • Threaded fittings
    • Alfarapid System
    • Valvevolution
    • Bibcocks
    • Equipment & accessories
  • Irrigation
  • Firefighting
  • Description

The 90° female threaded elbow is designed for threaded connections from ø ½” to 4″ in hydraulic applications related to the distribution of pressurised fluids in irrigation and waterworks systems. The 90° elbow, made of black, high-impact UV-stabilised PP is equipped with BSP (GAS) female threads and is designed and tested to guarantee a PN16 working pressure: equipped with a metal reinforcement ring in diameters from 2″½ to 4″.

In particular, it is used in drinking water transport systems in aqueducts and civil installations, in irrigation and gardening, geothermal systems, and for conveying wastewater and industrial water.

GENERAL CATALOGS AND TECHNICAL DATA SHEETS IN

Download area

VARIANTSIZEPNBAGBOX
16050-B½”PN16201000
16050-C¾”PN1620600
16050-D1”PN16203400
16050-E1”¼PN1010200
16050-F1"½PN105120
16050-G2"PN10260
16050-H2"½PN10-45
16050-L3"PN10-25
16050-M4"PN10-16

*| UV-stabilised high-impact black propylene with high ageing stability |*

REINFORCING RING:

The presence of the reinforcement ring in couplings with female threads provides an additional guarantee in terms of resistance to operating pressures, especially at high temperatures and in the long term.

WORKING TEMPERATURES:

MIN= -10°C MAX= +80°C

REGULATION FOR DRINKING WATER:

DM 174-06/04/2004 (Italy), DM 23/04/2009 e Reg. UE n° 10/2011, W270 and KTW (Germany), ATA (Netherlands), Global Mark (Australia), ACS (France), WRAS (UK).

REFERENCE STANDARDS:

  • Filetti BSP [BSP Threads]: UNI EN 10226 (ISO 7-1), BS 21, AS 1722.1
  • Filetti NPT [NPT Threads]: ANSI-ASME B1.20.1
  • Prove [Tests]: ISO 1167

ALFAIDRO LINE CERTIFICATES:

  • KIWA UNI : Netherlands, Italy
  • RINA : Italy
  • AENOR : Spain
  • L.P.E.E. : Maroc
  • GOST : Russia
  • CSTBat : France
  • ACS : France
  • CTPC : Romania
