Cross - male thread threaded fittings Plastica Alfa
Home / Hydraulics / Threaded fittings

Cross – male thread

SKU: 14064 Categories: Hydraulics, Threaded fittings
Plastica Alfa Catalog
  • Thermohydraulics
  • Hydraulics
    • Blu line plus
    • Flanged system
    • Black line
    • Universal
    • Clamp saddles
    • Threaded fittings
    • Alfarapid System
    • Valvevolution
    • Bibcocks
    • Equipment & accessories
  • Irrigation
  • Firefighting
  • Description

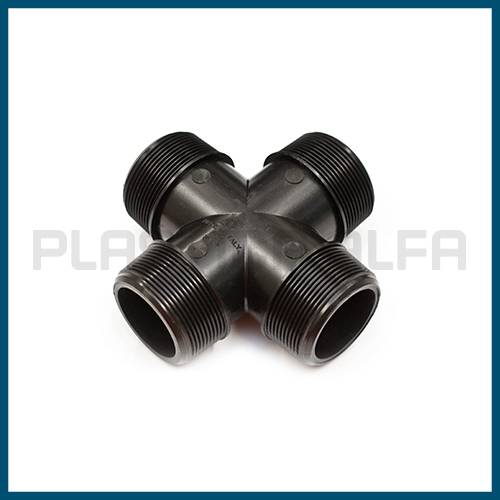

The male threaded cross is designed for threaded connections from ø 2″ to 4″ in hydraulic applications related to the distribution of pressurised fluids inirrigation and waterworks systems. The black high-impact UV-stabilised PP cross is equipped with four BSP male threads (GAS) and is designed and tested to guarantee a PN16 working pressure.

In particular, it is used in drinking water transport systems in aqueducts and civil installations, in irrigation and gardening, geothermal systems, and for conveying wastewater and industrial water.

GENERAL CATALOGS AND TECHNICAL DATA SHEETS IN

Download area

VARIANTSIZEPNBAGBOX
14064-G2"PN16nd65
14064-H2"½PN16nd30
14064-L3"PN16nd20
14064-M4"PN16nd14

*| UV-stabilised high-impact black propylene with high ageing stability |*

REINFORCING RING:

The presence of the reinforcement ring in couplings with female threads provides an additional guarantee in terms of resistance to operating pressures, especially at high temperatures and in the long term.

WORKING TEMPERATURES:

MIN= -10°C MAX= +80°C

REGULATION FOR DRINKING WATER:

DM 174-06/04/2004 (Italy), DM 23/04/2009 e Reg. UE n° 10/2011, W270 and KTW (Germany), ATA (Netherlands), Global Mark (Australia), ACS (France), WRAS (UK).

REFERENCE STANDARDS:

  • Filetti BSP [BSP Threads]: UNI EN 10226 (ISO 7-1), BS 21, AS 1722.1
  • Filetti NPT [NPT Threads]: ANSI-ASME B1.20.1
  • Prove [Tests]: ISO 1167

ALFAIDRO LINE CERTIFICATES:

  • KIWA UNI : Netherlands, Italy
  • RINA : Italy
  • AENOR : Spain
  • L.P.E.E. : Maroc
  • GOST : Russia
  • CSTBat : France
  • ACS : France
  • CTPC : Romania
