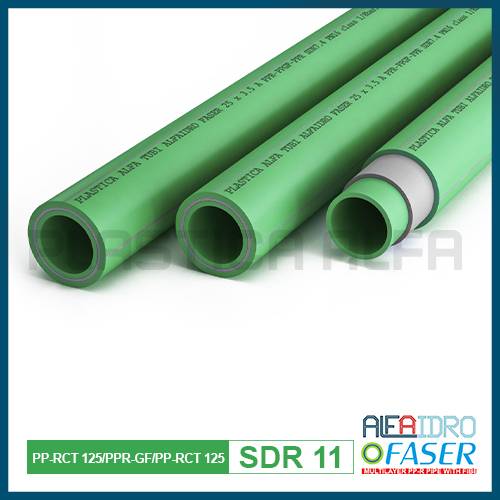

The multilayer pipe (FASER PP-RCT SDR 11) Alfaidro represents the evolution of single-layer pipes, as the advantages of traditional PP-RCT pipes are added to those of the glass fibre intermediate layer, which gives the pipes greater dimensional stability.
The inner and outer layers made of PP-RCT 125 give the pipe greater resistance to high temperatures over the long term, allowing it to have the same mechanical properties with a lower thickness than PP-R, thus lower weight, higher flow rate and lower pressure losses. The glass-fibre-reinforced interlayer reduces linear thermal expansion by approximately 75 per cent compared to single-layer pipes, which translates into fewer brackets (-30 per cent) and therefore less installation time and costs.
Alfaidro multilayer pipe (FASER PP-RCT SDR 11) is particularly suitable for hydronic heating and cooling systems, compressed air systems and various industrial applications. In addition, it can be fitted with the full range of Alfaidro fittings, using traditional socket welding and electro-welding techniques.
GENERAL CATALOGS AND TECHNICAL DATA SHEETS IN
VARIANT Outside diameter Internal diameter Nominal thickness DN Water content (l/m) Weight (Kg/m) Rod size Pack size
11CTTAF320 32 mm 26,2 mm 2,9 mm 25 0,539 0,266 4 mt 48 mt
11CTTAF400 40 mm 32,6 mm 3,7 mm 32 0,834 0,421 4 mt 32 mt
11CTTAF500 50 mm 40,8 mm 4,6 mm 40 1,307 0,653 4 mt 24 mt
11CTTAF630 63 mm 51,4 mm 5,8 mm 50 2,074 1,031 4 mt 12 mt
11CTTAF750 75 mm 61,4 mm 6,8 mm 65 2,959 1,437 4 mt 12 mt
11CTTAF900 90 mm 73,6 mm 8,2 mm 80 4,252 2,081 4 mt 8 mt
11CTTAF110 110 mm 90 mm 10 mm - 6,359 3,083 4 mt 8 mt
11CTTAF1125 125 mm 102,2 mm 11,4 mm 100 8,199 3,998 4 mt 4 mt
11CTTAF1160 160 mm 130,8 mm 14,6 mm 125 13,430 6,536 4 mt 4 mt
AVAILABLE COLOURS:
BLU – GREEN
TEMPERATURES AND OPERATING PRESSURE:
SDR 9
20°C to 23.1 bar
60°C – 12.2 bar
70°C – 10.4 bar
SDR 11
20°C to 18.4 bar
60°C – 9.7 bar
70°C – 8.1 bar
SDR 17
20°C – 11.6 bar
60°C – 6.1 bar
70°C – 5.1 bar
WORKING TEMPERATURES:
MIN= -20°C MAX= +95°C
THERMAL CONDUCTIVITY:
0,15 W/mK
COEFFICIENT OF LINEAR EXPANSION:
0.035 mm/mK
REGULATION FOR DRINKING WATER:
DM 174-06/04/2004 (Italy), DM 23/04/2009 e Reg. UE n° 10/2011, KTW RECCOMENDATIONS, DVGW-W 270, BS 6920, FDA CRITERIA IN 21, NSF61, NSF51
REFERENCE STANDARDS:
- Sistema [System]: UNI EN ISO 15874, ISO 15495, DIN 8077, DIN 8078, ASTM F2389, BS 4991, CSA B137.11
- Prove [Tests]: UNI EN ISO 15874, DIN 16962, ISO 1133, ISO 3126, ISO 1167, ISO 2501, ISO 9854, NSF14
