Reducing bush M-F

SKU: 15041 Categories: ,

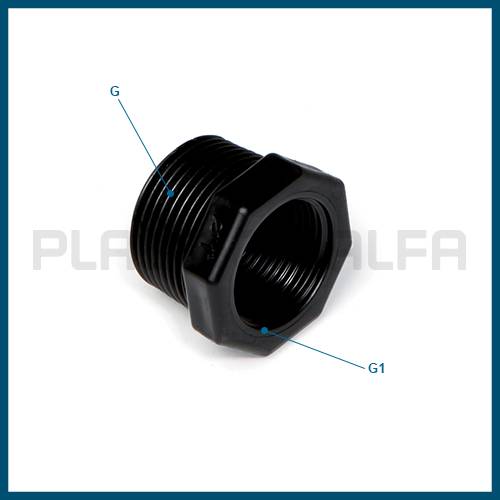

The Plastica Alfa Male – Female Reducing bush is designed for threaded connections from ø ½” to 4″ in hydraulic applications related to the distribution of pressurised fluids in irrigation and waterworks systems. The short M-F reduction, made of black, UV-stabilised high-impact PP, has two different threads (male on one side and female on the other) BSP (GAS) and is designed and tested to ensure a working pressure PN16is characterised by its compact size and has a hexagon at its end for easy gripping.

In particular, it is used in drinking water transport systems in aqueducts and civil installations, in irrigation and gardening, geothermal systems, and for conveying wastewater and industrial water.

GENERAL CATALOGS AND TECHNICAL DATA SHEETS IN

VariantSizePnBagBox
15041-C-B¾” x ½"PN16502000
15041-D-B1" x ½"PN16501200
15041-D-C1" x ¾"PN16501350
15041-E-B1"¼ x ½"PN1610650
15041-E-C1"¼ x ¾"PN1610650
15041-E-D1"¼ x 1"PN1610650
15041-F-B1"½ x ½"PN1610500
15041-F-C1"½ x ¾"PN1610500
15041-F-D1"½ x 1"PN1610500
15041-F-E1"½ x 1"¼PN1610500
15041-G-C2" x ¾"PN165260
15041-G-D2" x 1"PN165260
15041-G-E2" x 1"¼PN165260
15041-G-F2” x 1"½PN165260
15041-H-F2”½ x 1"½PN16-200
15041-H-G2"½ x 2"PN16-200
15041-L-D3" x 1"PN10-140
15041-L-H3” x 1"¼PN10-140
15041-L-F3" x 1"½PN10-140
15041-L-G3" x 2"PN10-140
15041-L-H3" x 2"½PN10-140
15041-M-G4" x 2"PN10-54
15041-M-L4" x 3"PN10-60

*| UV-stabilised high-impact black propylene with high ageing stability |*

REINFORCING RING:

The presence of the reinforcement ring in couplings with female threads provides an additional guarantee in terms of resistance to operating pressures, especially at high temperatures and in the long term.

WORKING TEMPERATURES:

MIN= -10°C MAX= +80°C

REGULATION FOR DRINKING WATER:

DM 174-06/04/2004 (Italy), DM 23/04/2009 e Reg. UE n° 10/2011, W270 and KTW (Germany), ATA (Netherlands), Global Mark (Australia), ACS (France), WRAS (UK).

REFERENCE STANDARDS:

  • Filetti BSP [BSP Threads]: UNI EN 10226 (ISO 7-1), BS 21, AS 1722.1
  • Filetti NPT [NPT Threads]: ANSI-ASME B1.20.1
  • Prove [Tests]: ISO 1167
