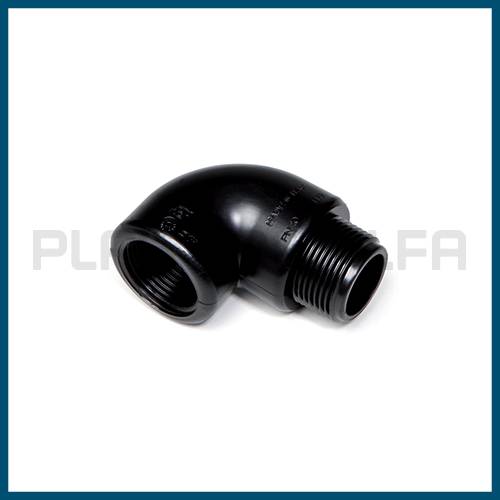

The 90° Threaded Elbow Male – Female is designed for threaded connections from ø ½” to 1″¼ in hydraulic applications related to the distribution of pressurised fluids in irrigation and waterworks systems. The 90° elbow, made of black high-impact UV-stabilised PP, has two different male and female BSP (GAS) threads and is designed and tested to guarantee a PN16 working pressure.
In particular, it is used in drinking water transport systems in aqueducts and civil installations, in irrigation and gardening, geothermal systems, and for conveying wastewater and industrial water.
GENERAL CATALOGS AND TECHNICAL DATA SHEETS IN
VARIANT SIZE PN BAG BOX
16051-B ½” PN16 20 1000
16051-C ¾” PN16 20 540
16051-D 1” PN16 10 300
16051-E 1”¼ PN10 10 180
*| UV-stabilised high-impact black propylene with high ageing stability |*
REINFORCING RING:
The presence of the reinforcement ring in couplings with female threads provides an additional guarantee in terms of resistance to operating pressures, especially at high temperatures and in the long term.
WORKING TEMPERATURES:
MIN= -10°C MAX= +80°C
REGULATION FOR DRINKING WATER:
DM 174-06/04/2004 (Italy), DM 23/04/2009 e Reg. UE n° 10/2011, W270 and KTW (Germany), ATA (Netherlands), Global Mark (Australia), ACS (France), WRAS (UK).
REFERENCE STANDARDS:
- Filetti BSP [BSP Threads]: UNI EN 10226 (ISO 7-1), BS 21, AS 1722.1
- Filetti NPT [NPT Threads]: ANSI-ASME B1.20.1
- Prove [Tests]: ISO 1167
